Digital microscope with autofocus and 20X Zoom
Experience quality control and inspection in 4K image quality with fast live image speed. The perfect solution for those who are looking for improving and speeding their inspection process. Working with a digital microscope improves ergonomics, and results in less operator fatigue and stress. With the DPX IM200-4K users can enjoy fast, comfortable, and user-friendly on-screen operation – improving sample evaluation, and measurement, facilitating effective collaborations, and documentation in high resolution. For more advanced applications the user has the option to connect the system to a PC via USB 3.0 or ethernet and use DeltaPix InSight in order to make further analysis or to add additional features.
- 3D topography
- 2D measurements
- Super depth of field
- Stand-alone and PC software
- 4K resolution
- 20X optical zoom
Videos
Files
| Attachment | Size |
|---|---|
 DPX IM200-4K Datasheet | 1.34 MB |
| RINGSPOT-H4KAZF Datasheet | 1.68 MB |
| Whitepaper Zoom versus fixed inspection | 617.63 KB |
3D Topography
With the 3D module in InSight, it is possible to display the topography of the specimen under observation. Height measurements and profiles

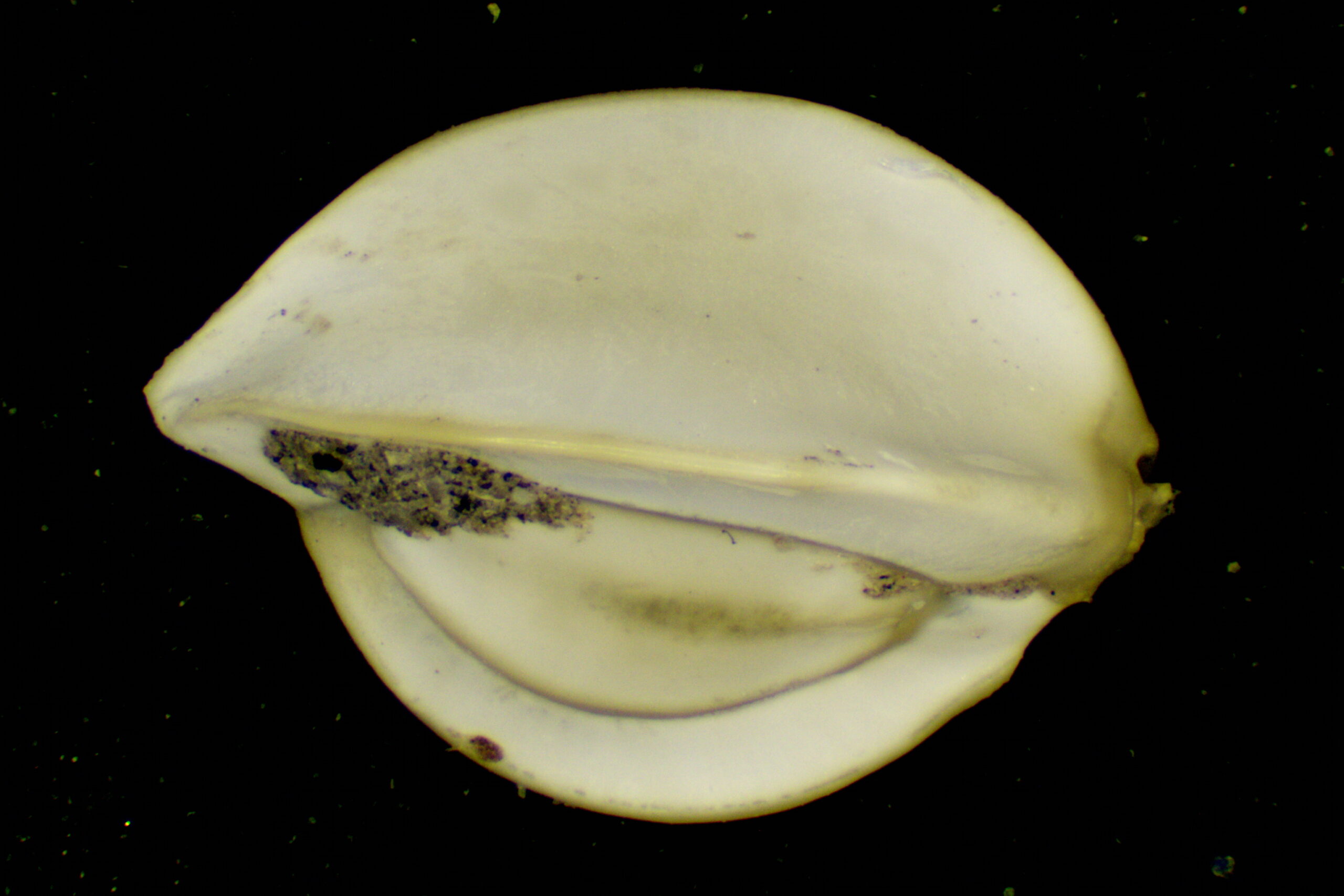

Super Depth of Field.
“Super depth of field”, by capturing images at different focus levels and intelligently extracting a full-focus image from the captured images

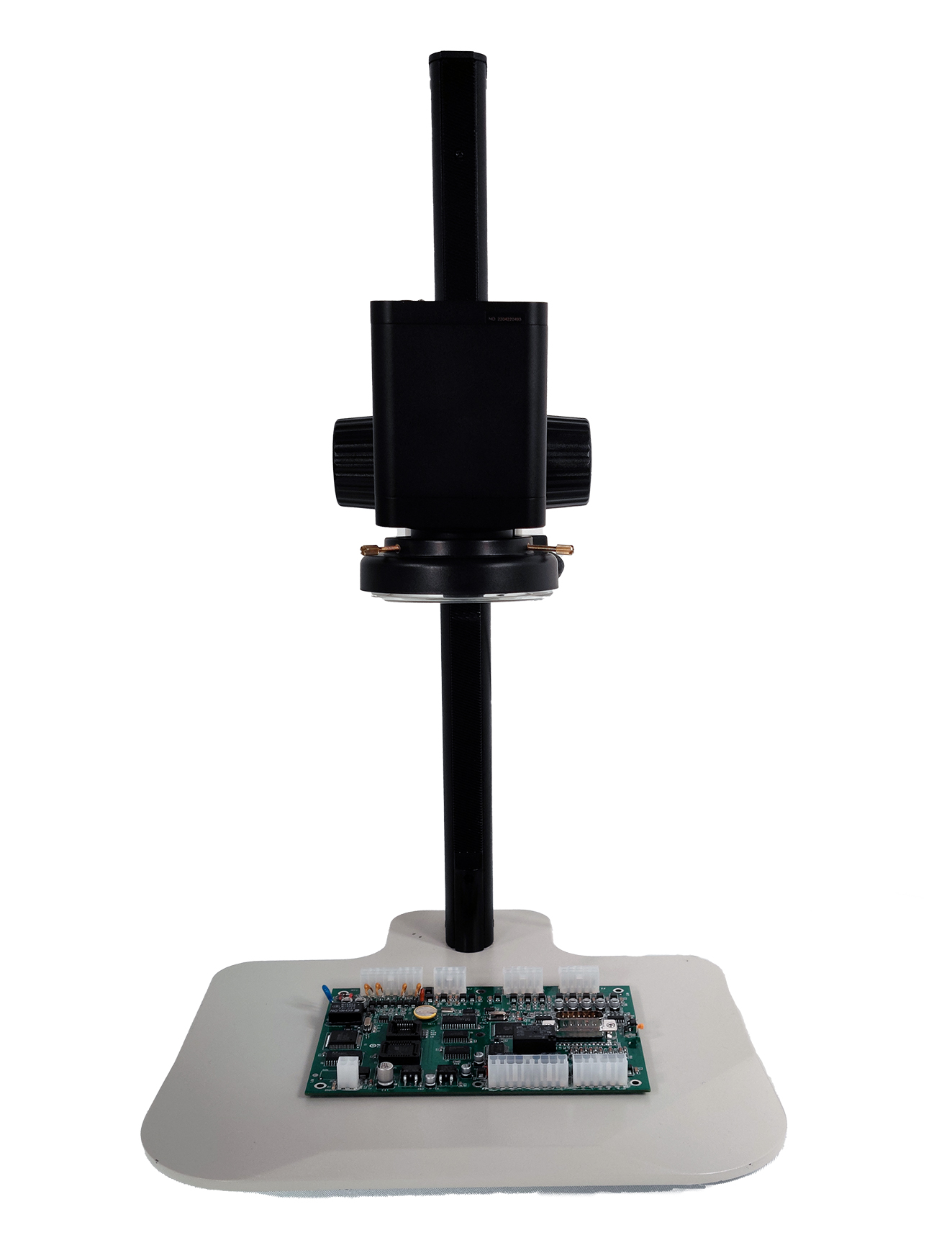

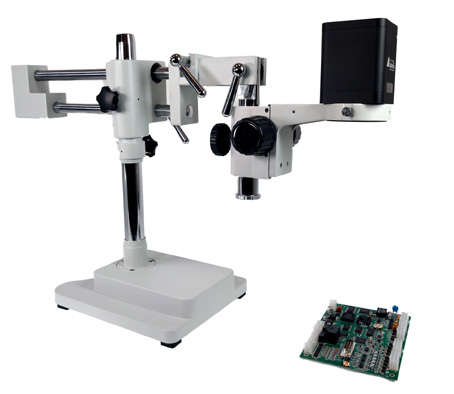

Stands
DPX IM200 can be offered with a wide range of stands and other accessories, ask DeltaPix for more info
Extended Field of View / Auto stitching.
By including a motorized XY stage with the DPX M6000 digital microscope, the field of view can be extended significantly
Motorized zoom
The DPX IM200 features a motorized zoom of the highest mechanical and optical quality allowing the user to see a large overview image of the sample and zoom in to inspect
the details.
4K resolution
4K resolution and fast frame rate allow the operator to see every detail in the sample and capture super high detailed imaging for documentation and more.
On-screen measurements.
The DPX IM200-4K offers extensive measuring tools directly on the screen without the need for a PC.
Autofocus
The DPX MI200-4K features autofocus allowing the operator to work faster and more efficiently with the system as the system is automatically providing precise focus.
- Documentation and publishing
- Material science
- Quality control
- Bright Field
- Histology
- Digital Classroom
- PCB Inspection
- Micro repair
Technical Features
Sensor | Sony 1/2.8”color CMOS |
Resolution | 3840Ч2160 |
Pixel size | 1.45umx1.45um |
Shutter | Rolling |
Scanning method | Progressive scanning |
Frame rate | 30fps |
Gain | Automatic / Manual |
Exposure time | 0.04ms-1000ms |
White balance | Automatic/Manual/Area |
Image storage | JPEG/tiff |
Video format | 3840x2160 MP4 30 FPS |
Motorized zoom | Yes |
Auto focus | Yes |
Manual focus | Yes |
Build-in measurement software | Yes |
Optical zoom ratio | 20X |
Working distance | 195mm |
Field of view | 229mm-11.46mm |
Magnification | 1.22x-24.4x(11”screen), 3.1X-62x(28” screen) |

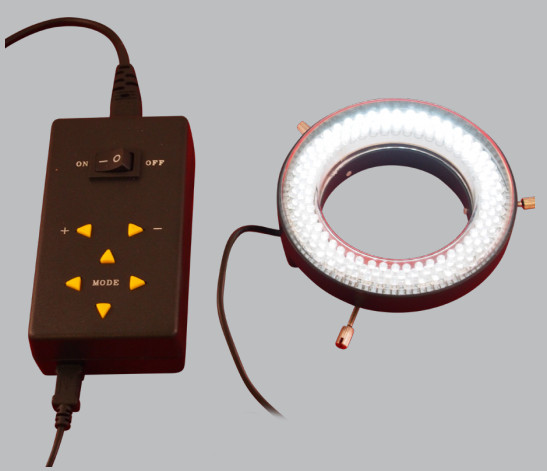

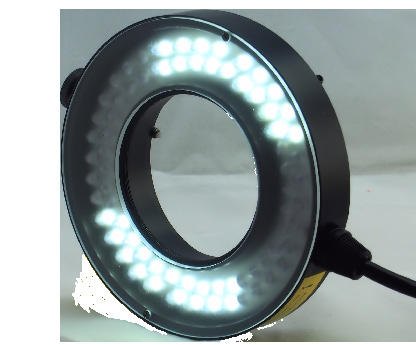

Illumination | Build-in Ring light |
HDMI 1.4 |
USB Mouse |
USB 2.0 |
Ethernet |
SD crad or USB memory key |
Operating temperature | -10C - 50C |
Storage temperature | -20C -60C |
Operating humidity | 10% - 80% RH |
Storage humidity | 10% - 60% RH |
Dimension (WxDxH) | 80mm X 80mm X 119mm |
Shipping Weight | 0.75kg |
