Uncompromising Image Quality with DPX IMF system.
The DPX IMF is a premium Ultra High Definition 8.3-megapixel optical inspection system. Produces ultra-sharp live pictures of your inspection objects up to 40x on a 28” monitor at the same time providing a large field of view. Additionally, the DPX IMF is a flexible system that can be configured with many different lenses, illumination, and stands to match the application.
Made for Ergonomic Use
The DPX IMF provides relief to the eyes, neck, and shoulders. The unique ergonomic design with a flexible working distance between 100mm- 400mm allows operators to sit comfortably in a good working posture and carry out their optical inspection tasks efficiently.
- Ultra-sharp images
- On-screen measurement
- Live image speed of 60 fps with 1920 x 1080 pixels
- Live image speed of 30 fps with 3840 x 2160 pixels
- Built-in 4K video recording
- Large field of view
- Selectable language: English, German, French
Files
| Attachment | Size |
|---|---|
 Brochure DPX IMF INSPECTION | 4.59 MB |
4K Resolution
The DPX IM system is made with a high-quality and high-resolution cameras and lenses providing 4K inspection.
Configurable
The DPX IMF Digital Microscope can be configured with different lenses, cameras, and light sources to meet most requirements
Measurement
The DPX IMF is an indispensable tool for guide line measurements, offering a wide range of tools and reporting options
Made for Ergonomic Use
Provides relief to the eyes, neck, and shoulders. The unique ergonomic design with a flexible working distance
High quality, cost effective and flexible
The DPX IMF microscope system is designed as a modular system to make it flexible and easily customizable to fit any inspection need.
User-friendly Camera
Plug and play – the HDMI interface provides high speed and ease of installation on any 4K monitor with HDMI input.
No need for a computer, because the DPX IMF has built-in software. PCsoftware and Android app options are also available.
Typical applications:
- Documentation and publishing
- Material science
- Quality control
- Bright Field
- Semiconductor inspection
DeltaPix Built-in Software
The DPX IMF system has a built-in software that provides a powerful platform for precise measurements, image capturing, video recording and high speed live image for smooth inspection.
- Basic Ring Light
- Manual XY stage

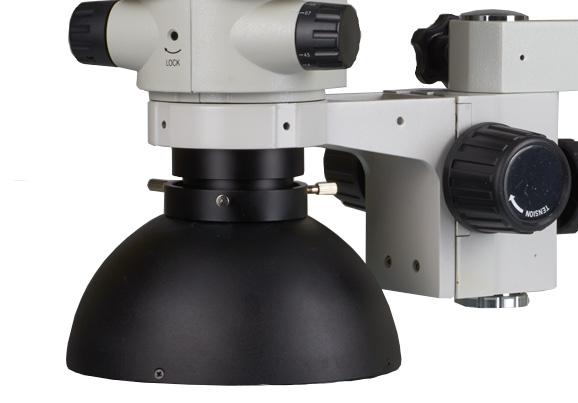

- Dome LED light

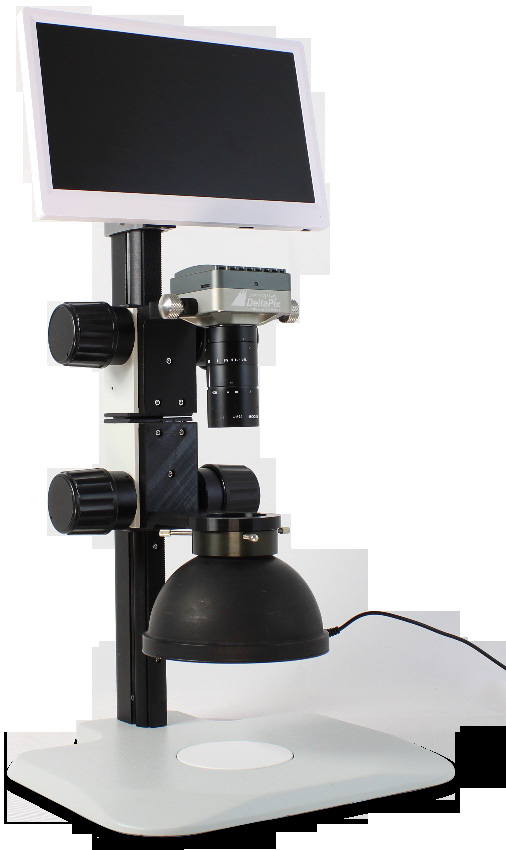

- 11.6" Screen for mouning on the track
- Spot Light
- Back light
- Ring light 8Zone
Technical Features
Live preview resolution | 3840 x 2160 @60FPS |
Still image resolution | 8.3Mpixels (3840x2160) |
Record video | 4K Video |
Software | Built-in, InSIght or Android APP |
Sensor size | 1/1.8” Sony Exmor |
Pixel size | 2 µm x 2 µm |
Sensitivity | 505mv with 1/30s |
Exposure mode | Automatic or Manual |
Color balance | Automatic or Manual |
Interface | HDMI/USB 3.0/WiFI and Ethernet |
Data format | Still image, JPEG and Tiff, Video record.AVI |
Minimum requirements | 4K/Full HD monitor with HDMI input |
Language | English, German, French and Italian |
Accessories | Mouse, 32GB High speed SD card and 12V power supply. |
Lens Options | Field of view range | Minimum working | Magnification range with |
|---|---|---|---|
16mm | 56mm-225mm | 100mm | 12.7x-3.16x |
25mm | 36mm-144mm | 100mm | 19.7x-4.9x |
35mm | 26mm-103mm | 100mm | 27x-6.9x |
50mm | 18mm-72mm | 100mm | 39.5x-9.8x |
75mm | 30mm-48mm | 250mm | 23.7x-14.8x |
-Coordinate point | - Distance between two points |
-Three Point Arc | - Multiple perpendicular lines |
-Crosshairs | - Distance between line and spots |
-Multipoint curve | - Rectangle |
-Dual crosshairs | - Distance between line and circle |
-Drawing a circle by its center | - Polygon |
-Dimlinear | - Distance between two lines |
-Drawing a circle by two points | - Angle |
-Multipoint broken line | - Distance between two circles |
-Drawing a circle by three points | -Annotation |
-Parallel | - Concentric circle |
-Perpendicular line | |
