Flange CF Flange CF Cieche, cieche ruotabili, forate

Flange CF Cieche, cieche ruotabili, forate

Categoria:

Flange e attacchi Conflat (CF)

CF Flangia cieca

CF Flange cieche rotabili

CF Flange Forate

Abbiamo a catalogo flange Conflat in un ampio range, da 1.33 a 16.5 pollici, nelle versioni girevole e non. Tutte le flange CF sono compatibili con gli standard di altri produttori e sono disponibili in SS304L come standard, con l'opzione per SS 316LN ESR di alta qualità.

Le flange CF utilizzano guarnizioni in rame, acquistabili separatamente, trattate con OFHC (Oxygen Free High Conductivity) per una effettiva sigillatura fino a 1x10 Torr. Inoltre le guarnizioni in rame possono sostenere una temperatura fino a 450°C, ma in questi casi è consigliata la sostituzione delle guarnizioni.

Pulizia e Confezionamento

Tutti i prodotti con giunti saldati sono testati al 100% per fuori uscita di elio prima dell'utilizzo. Inoltre, per assicurare la pulizia dei prodotti, tutte le parti sono pulite tramite ultrasuoni secondo gli standard UHV utilizzando acqua deionizzata, e sono confezionati in ambiente libero da contaminazioni, in camera bianca classe 10,000 (ISO 4). Su ogni confezione viene apposta un'etichetta con codice a barre per identificare il codice prodotto del componente, la marcatura e il numero di lotto, al fine di garantire una tracciabilità completa.

SPECIFICHE STANDARD

Classificazione Vuoto: Ultra High Vacuum - Ultra Alto Vuoto
Materiale: SS304L - SS316LN
Dimensioni delle flange: CF 1.33”~ CF 16.5”
Diametro tubo: 1/ 2”~14.0”
Range di Vuoto: 760 Torr ~ 1 x 10 Torr per le flange in 304L / 760 Torr ~ 1 x 10 Torr per le flange in 316LN
Materiale delle guarnizioni: Rame OFHC o Placcato Argento
Range di Temperatura: –190°C ~ 450°C

News, eventi, promo, webinar

17/07/2019

Prodotti di alta qualità per Alto Vuoto HV e Ultra Alto Vuoto UHV

Caratteristiche Tecniche

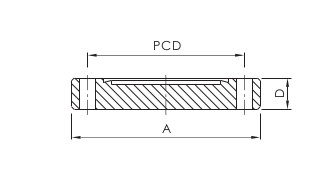

Flange Cieche CF


Codice	Dimensione Flange	A (mm)	D (mm)	PCD (mm)	Fori bullone	Diametro (mm) / Tipo di filettatura
CF-BL-133	CF1.33”(DN16)	33,7	7,60	26,97	6	4.37
CF-BL-133T	CF1.33”(DN16)	33,7	7,60	26,97	6	8-32
CF-BL-133M	CF1.33”(DN16)	33,7	7,60	26,97	6	M4
CF-BL-212	CF2.12"(DN25)	53,8	11,90	41,28	4	6.73
CF-BL-212T	CF2.12”(DN25)	53,8	11,90	41,28	4	1/4-28
CF-BL-212M	CF2.12”(DN25)	53,8	11,90	41,28	4	M6
CF-BL-275	CF2.75”(DN40)	69,3	12,70	58,72	6	6.73
CF-BL-275T	CF2.75”(DN40)	69,3	12,70	58,72	6	1/4-28
CF-BL-275M	CF2.75”(DN40)	69,3	12,70	58,72	6	M6
CF-BL-338	CF3.38”(DN50)	85,3	16,00	72,39	8	8.43
CF-BL-338T	CF3.38”(DN50)	85,3	16,00	72,39	8	5/16-24
CF-BL-338M	CF3.38”(DN50)	85,3	16,00	72,39	8	M8
CF-BL-450	CF4.50”(DN63)	113,5	17,30	92,15	8	8.43
CF-BL-450T	CF4.50”(DN63)	113,5	17,30	92,15	8	5/16-24
CF-BL-450M	CF4.50”(DN63)	113,5	17,30	92,15	8	M8
CF-BL-462	CF4.62”(DN80)	117	19,10	102,36	10	8.43
CF-BL-462T	CF4.62”(DN80)	117	19,10	102,36	10	5/16-24
CF-BL-462M	CF4.62”(DN80)	117	19,10	102,36	10	M8
CF-BL-600	CF6.00”(DN100)	151,6	19,80	130,25	16	8.43
CF-BL-600T	CF6.00”(DN100)	151,6	19,80	130,25	16	5/16-24
CF-BL-600M	CF6.00”(DN100)	151,6	19,80	130,25	16	M8
CF-BL-675	CF6.75”(DN130)	170,69	21,30	151,61	18	8.43
CF-BL-675T	CF6.75”(DN130)	170,69	21,30	151,61	18	5/16-24
CF-BL-675M	CF6.75”(DN130)	170,69	21,30	151,61	18	M8
CF-BL-800	CF8.00”(DN160)	202,44	22,35	181,05	20	8.43
CF-BL-800T	CF8.00”(DN160)	202,44	22,35	181,05	20	5/16-24
CF-BL-800M	CF8.00”(DN160)	202,44	22,35	181,05	20	M8
CF-BL-1000	CF10.00”(DN200)	253,24	24,60	231,85	24	8.43
CF-BL-1000T	CF10.00”(DN200)	253,24	24,60	231,85	24	5/16-24
CF-BL-1000M	CF10.00”(DN200)	253,24	24,60	231,85	24	M8
CF-BL-1200	CF12.00”(DN250)	304,4	25,90	283,97	32	8.43
CF-BL-1200T	CF12.00”(DN250)	304,4	25,90	283,97	32	5/16-24
CF-BL-1200M	CF12.00”(DN250)	304,4	25,90	283,97	32	M8
CF-BL-1325	CF13.25”(DN270)	335,79	28,45	306,32	30	10.49
CF-BL-1325T	CF13.25”(DN270)	335,79	28,45	306,32	30	3/8-24
CF-BL-1325M	CF13.25”(DN270)	335,79	28,45	306,32	30	M10
CF-BL-1400	CF14.00”(DN300)	354,84	28,45	325,37	30	10.49
CF-BL-1400T	CF14.00”(DN300)	354,84	28,45	325,37	30	3/8-24
CF-BL-1400M	CF14.00”(DN300)	354,84	28,45	325,37	30	M10
CF-BL-1650	CF16.50”(DN350)	418,34	28,45	388,87	36	10.49
CF-BL-1650T	CF16.50”(DN350)	418,34	28,45	388,87	36	3/8-24
CF-BL-1650M	CF16.50”(DN350)	418,34	28,45	388,87	36	M10

*Materiala: SS 304L

*Fori filettati

*SS 316LN disponibile su richiesta

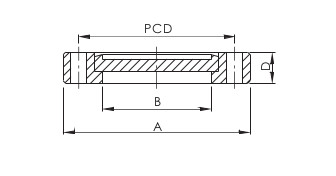

CF Flange Cieche Ruotabili


Codice	Dimensione Flange	A (mm)	B (mm)	D (mm)	PCD (mm)	Fori Bullone	Diametro (mm) / Filettatura
CF-BL-133R	CF1.33" (DN16)	33.70	19.41	7.60	26.97	6	4.37
CF-BL-133RT	CF1.33" (DN16)	33.70	19.41	7.60	26.97	6	8-32
CF-BL-133RM	CF1.33" (DN16)	33.70	19.41	7.60	26.97	6	M4
CF-BL-212R	CF2.12" (DN25)	53.80	27.94	11.90	41.28	4	6.73
CF-BL-212RT	CF2.12" (DN25)	53.80	27.94	11.90	41.28	4	1/4-28
CF-BL-212RM	CF2.12" (DN25)	53.80	27.94	11.90	41.28	4	M6
CF-BL-275R	CF2.75" (DN40)	69.30	48.31	12.70	58.72	6	6.73
CF-BL-275RT	CF2.75" (DN40)	69.30	48.31	12.70	58.72	6	1/4-28
CF-BL-275RM	CF2.75" (DN40)	69.30	48.31	12.70	58.72	6	M6
CF-BL-338R	CF3.38" (DN50)	85.30	54.50	17.40	72.39	8	8.43
CF-BL-338RT	CF3.38" (DN50)	85.30	54.50	17.40	72.39	8	5/16-24
CF-BL-338RM	CF3.38" (DN50)	85.30	54.50	17.40	72.39	8	M8
CF-BL-450R	CF4.50" (DN63)	113.50	72.39	19.10	92.15	8	8.43
CF-BL-450RT	CF4.50" (DN63)	113.50	72.39	19.10	92.15	8	5/16-24
CF-BL-450RM	CF4.50" (DN63)	113.50	72.39	19.10	92.15	8	M8
CF-BL-462R	CF4.62" (DN80)	117.00	79.71	20.60	102.36	10	8.43
CF-BL-462RT	CF4.62" (DN80)	117.00	79.71	20.60	102.36	10	5/16-24
CF-BL-462RM	CF4.62" (DN80)	117.00	79.71	20.60	102.36	10	M8
CF-BL-600R	CF6.00" (DN100)	151.60	106.17	21.30	130.25	16	8.43
CF-BL-600RT	CF6.00" (DN100)	151.60	106.17	21.30	130.25	16	5/16-24
CF-BL-600RM	CF6.00" (DN100)	151.60	106.17	21.30	130.25	16	M8
CF-BL-675R	CF6.75" (DN130)	170.69	129.50	21.30	151.61	18	8.43
CF-BL-675RT	CF6.75" (DN130)	170.69	129.50	21.30	151.61	18	5/16-24
CF-BL-675RM	CF6.75" (DN130)	170.69	129.50	21.30	151.61	18	M8
CF-BL-800R	CF8.00" (DN160)	202.44	155.70	23.90	181.05	20	8.43
CF-BL-800RT	CF8.00" (DN160)	202.44	155.70	23.90	181.05	20	5/16-24
CF-BL-800RM	CF8.00" (DN160)	202.44	155.70	23.90	181.05	20	M8
CF-BL-1000R	CF10.00" (DN200)	253.24	208.28	24.60	231.85	24	8.43
CF-BL-1000RT	CF10.00" (DN200)	253.24	208.28	24.60	231.85	24	5/16-24
CF-BL-1000RM	CF10.00" (DN200)	253.24	208.28	24.60	231.85	24	M8
CF-BL-1200R	CF12.00" (DN250)	304.04	256.03	25.90	283.97	32	8.43
CF-BL-1200RT	CF12.00" (DN250)	304.04	256.03	25.90	283.97	32	5/16-24
CF-BL-1200RM	CF12.00" (DN250)	304.04	256.03	25.90	283.97	32	M8
CF-BL-1325R	CF13.25" (DN270)	335.79	276.30	28.45	306.32	30	10.49
CF-BL-1325RT	CF13.25" (DN270)	335.79	276.30	28.45	306.32	30	3/8-24
CF-BL-1325RM	CF13.25" (DN270)	335.79	276.30	28.45	306.32	30	M10
CF-BL-1400R	CF14.00" (DN300)	354.84	305.82	28.45	325.37	30	10.49
CF-BL-1400RT	CF14.00" (DN300)	354.84	305.82	28.45	325.37	30	3/8-24
CF-BL-1400RM	CF14.00" (DN300)	354.84	305.82	28.45	325.37	30	M10
CF-BL-1650R	CF16.50" (DN350)	418.34	359.61	28.45	388.87	36	10.49
CF-BL-1650RT	CF16.50" (DN350)	418.34	359.61	28.45	388.87	36	3/8-24
CF-BL-1650RM	CF16.50" (DN350)	418.34	359.61	28.45	388.87	36	M10

*Materiale: SS 304L
*Fori filettati
*SS 316LN disponibile su richiesta

CF Flange Forate


Part Number	Size	A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	PCD (mm)	Bolt Holes	Diameter (mm) - Thread Type
CF-BF-133x038	CF1.33" (DN16)	33.70	9.65	-	7.60	-	26.97	6	4.37
CF-BF-133x038T	CF1.33" (DN16)	33.70	9.65	-	7.60	-	26.97	6	8-32
CF-BF-133x038M	CF1.33" (DN16)	33.70	9.65	-	7.60	-	26.97	6	M4
CF-BF-133x050	CF1.33" (DN16)	33.70	12.83	-	7.60	-	26.97	6	4.37
CF-BF-133x050T	CF1.33" (DN16)	33.70	12.83	-	7.60	-	26.97	6	8-32
CF-BF-133x050M	CF1.33" (DN16)	33.70	12.83	-	7.60	-	26.97	6	M4
CF-BF-133x075	CF1.33" (DN16)	33.70	19.30	16.00	7.60	4.45	26.97	6	4.37
CF-BF-133x075T	CF1.33" (DN16)	33.70	19.30	16.00	7.60	4.45	26.97	6	8-32
CF-BF-133x075M	CF1.33" (DN16)	33.70	19.30	16.00	7.60	4.45	26.97	6	M4
CF-BF-212x100	CF2.12" (DN25)	53.80	25.65	23.90	11.90	4.32	41.28	4	6.73
CF-BF-212x100T	CF2.12" (DN25)	53.80	25.65	23.90	11.90	4.32	41.28	4	1/4-28
CF-BF-212x100M	CF2.12" (DN25)	53.80	25.65	23.90	11.90	4.32	41.28	4	M6
CF-BF-275x075	CF2.75" (DN40)	69.30	19.30	16.00	12.70	5.31	58.72	6	6.73
CF-BF-275x075T	CF2.75" (DN40)	69.30	19.30	16.00	12.70	5.31	58.72	6	1/4-28
CF-BF-275x075M	CF2.75" (DN40)	69.30	19.30	16.00	12.70	5.31	58.72	6	M6
CF-BF-275x100	CF2.75" (DN40)	69.30	25.65	22.10	12.70	5.31	58.72	6	6.73
CF-BF-275x100T	CF2.75" (DN40)	69.30	25.65	22.10	12.70	5.31	58.72	6	1/4-28
CF-BF-275x100M	CF2.75" (DN40)	69.30	25.65	22.10	12.70	5.31	58.72	6	M6
CF-BF-275x150	CF2.75" (DN40)	69.30	38.35	36.60	12.70	5.31	58.72	6	6.73
CF-BF-275x150T	CF2.75" (DN40)	69.30	38.35	36.60	12.70	5.31	58.72	6	1/4-28
CF-BF-275x150M	CF2.75" (DN40)	69.30	38.35	36.60	12.70	5.31	58.72	6	M6
CF-BF-275x175	CF2.75" (DN40)	69.30	44.70	41.20	12.70	5.31	58.72	6	6.73
CF-BF-275x175T	CF2.75" (DN40)	69.30	44.70	41.20	12.70	5.31	58.72	6	1/4-28
CF-BF-275x175M	CF2.75" (DN40)	69.30	44.70	41.20	12.70	5.31	58.72	6	M6
CF-BF-338x200	CF3.38" (DN50)	85.30	51.05	49.30	17.40	5.72	72.39	8	8.43
CF-BF-338x200T	CF3.38" (DN50)	85.30	51.05	49.30	17.40	5.72	72.39	8	5/16-24
CF-BF-338x200M	CF3.38" (DN50)	85.30	51.05	49.30	17.40	5.72	72.39	8	M8
CF-BF-450x250	CF4.50" (DN63)	113.50	63.75	62.00	17.40	9.53	92.15	8	8.43
CF-BF-450x250T	CF4.50" (DN63)	113.50	63.75	62.00	17.40	9.53	92.15	8	5/16-24
CF-BF-450x250M	CF4.50" (DN63)	113.50	63.75	62.00	17.40	9.53	92.15	8	M8
CF-BF-462x300	CF4.62" (DN80)	117.00	76.45	74.70	20.60	9.60	102.36	10	8.43
CF-BF-462x300T	CF4.62" (DN80)	117.00	76.45	74.70	20.60	9.60	102.36	10	5/16-24
CF-BF-462x300M	CF4.62" (DN80)	117.00	76.45	74.70	20.60	9.60	102.36	10	M8
CF-BF-600x400	CF6.00" (DN100)	151.60	101.85	99.60	19.80	11.10	130.25	16	8.43
CF-BF-600x400T	CF6.00" (DN100)	151.60	101.85	99.60	19.80	11.10	130.25	16	5/16-24
CF-BF-600x400M	CF6.00" (DN100)	151.60	101.85	99.60	19.80	11.10	130.25	16	M8
CF-BF-675x500	CF6.75" (DN130)	170.69	127.25	123.83	21.34	11.68	151.61	18	8.43
CF-BF-675x500T	CF6.75" (DN130)	170.69	127.25	123.83	21.34	11.68	151.61	18	5/16-24
CF-BF-675x500M	CF6.75" (DN130)	170.69	127.25	123.83	21.34	11.68	151.61	18	M8
CF-BF-800x600	CF8.00" (DN160)	202.44	152.91	150.40	22.35	12.70	181.05	20	8.43
CF-BF-800x600T	CF8.00" (DN160)	202.44	152.91	150.40	22.35	12.70	181.05	20	5/16-24
CF-BF-800x600M	CF8.00" (DN160)	202.44	152.91	150.40	22.35	12.70	181.05	20	M8
CF-BF-1000x800	CF10.00" (DN200)	253.24	203.71	200.40	24.64	12.70	231.85	24	8.43
CF-BF-1000x800T	CF10.00" (DN200)	253.24	203.71	200.40	24.64	12.70	231.85	24	5/16-24
CF-BF-1000x800M	CF10.00" (DN200)	253.24	203.71	200.40	24.64	12.70	231.85	24	M8
CF-BF-1200x1000	CF12.00" (DN250)	304.04	254.51	250.95	25.90	12.70	283.97	32	8.43
CF-BF-1200x1000T	CF12.00" (DN250)	304.04	254.51	250.95	25.90	12.70	283.97	32	5/16-24
CF-BF-1200x1000M	CF12.00" (DN250)	304.04	254.51	250.95	25.90	12.70	283.97	32	M8
CF-BF-1325x1000	CF13.25" (DN270)	335.79	254.51	250.95	28.45	12.70	306.32	30	10.49
CF-BF-1325x1000T	CF13.25" (DN270)	335.79	254.51	250.95	28.45	12.70	306.32	30	3/8-24
CF-BF-1325x1000M	CF13.25" (DN270)	335.79	254.51	250.95	28.45	12.70	306.32	30	M10
CF-BF-1400x1200	CF14.00" (DN300)	354.84	305.31	301.75	28.45	12.70	325.37	30	10.49
CF-BF-1400x1200T	CF14.00" (DN300)	354.84	305.31	301.75	28.45	12.70	325.37	30	3/8-24
CF-BF-1400x1200M	CF14.00" (DN300)	354.84	305.31	301.75	28.45	12.70	325.37	30	M10
CF-BF-1650x1400	CF16.50" (DN350)	418.34	356.11	352.00	28.45	12.70	388.87	36	10.49
CF-BF-1650x1400T	CF16.50" (DN350)	418.34	356.11	352.00	28.45	12.70	388.87	36	3/8-24
CF-BF-1650x1400M	CF16.50" (DN350)	418.34	356.11	352.00	28.45	12.70	388.87	36	M10
CF-BF-1650x1400M	CF16.50" (DN350)	418.34	356.11	352.00	28.45	12.70	388.87	36	M10

*Materiale: SS 304L
*Buchi filettati
*Disponibili in SS 316LN su richiesta
