CF Hardware & Seals

OFHC Copper Gaskets, Hex Head Bolts, Plate Nuts, Plastic Caps
Category:
Conflat (CF) Flanges & Fittings

Immediate availability in stock:

  • CU16 - OFHC Copper Gasket, 16.0mm (+/-. 1), 21.25mm (+/-. 1), 2mm Thick - 30pcs
  • CU39 - OFHC Copper Gasket, ID = 39.2mm (+/-. 1), OD = 48.1mm (+/-. 1), thickness 2mm, - 50pcs
  • CU63 - OFHC Copper Gasket, ID = 63.45mm (+/-. 1), OD = 82.4mm (+/-. 1), 2mm thick, - 50pcs
  • CU100 - OFHC Copper Gasket, ID = 101.7mm (+/-. 1), OD = 120.5mm (+/-. 1), 2mm thick - 30pcs
  • CU150 - OFHC Copper Gasket, ID = 152.5mm (+/-. 1), OD = 171.1mm (+/-. 1), 2mm thick, - 10pcs

CF flanges utilize an OFHC (Oxygen Free High Conductivity) copper gasket (also sold separately) for effective seal up to 1x10 Torr. Moreover, the copper gasket can sustain a temperature of up to 450°C, but reuse of copper gaskets is not recommended.

Cleaning and Packaging

All products with weld joints are 100% helium leak tested to assure leak free operation prior to use. In addition, to ensure the cleanliness of AdvanTorr products, all parts are ultrasonically cleaned to UHV standards using de-ionized water and packaged in contamination free, class 10,000 clean room conditions. Each bag is affixed with a barcode label identifying the component's part number, heat number and batch number for full traceability.

Contact us for info, quote, demo, etc..

Technical Features

OFHC Copper Gaskets & OFHC Copper Gaskets, Silver Plated

Part Number

Size

A

B

CF-CS-133

CF1.33"(DN16)

16.20

21.25

CF-CS-212

CF2.12"(DN25)

25.65

32.77

CF-CS-275

CF2.75"(DN35)

36.80

48.10

CF-CS-275-1

CF2.75"(DN40)

39.00

48.10

CF-CS-338

CF3.38"(DN50)

51.05

61.60

CF-CS-450

CF4.50"(DN63)

63.60

82.35

CF-CS-462

CF4.62"(DN80)

76.45

91.39

CF-CS-600

CF6.00"(DN100)

101.80

120.45

CF-CS-675

CF6.75"(DN130)

127.25

141.40

CF-CS-800

CF8.00"(DN160)

152.60

171.25

CF-CS-1000

CF10.00"(DN200)

203.40

222.05

CF-CS-1200

CF12.00"(DN250)

254.20

272.85

CF-CS-1325

CF13.25"(DN270)

274.00

294.34

CF-CS-1400

CF14.00"(DN300)

300.00

313.00

CF-CS-1650

CF16.50"(DN350)

356.50

376.60

*Optional for 10 pcs in 1 pack

Hex Head Bolts
Metric Thread

Part Number (metric thread)

Size

Thread

L (mm)

No. of Sets

CF-HB-133M

CF1.33"(DN16)

M4xP0.70

20

25

CF-HB-212M

CF2.12"(DN25)

M6xP1.00

35

25

CF-HB-275M

CF2.75"(DN40)

M6xP1.00

35

25

CF-HB-338M

CF3.38"(DN50)

M8xP1.25

45

25

CF-HB-450M

CF4.50"(DN63)

M8xP1.25

45

25

CF-HB-600M

CF6.00"(DN100)

M8xP1.25

50

25

CF-HB-800M

CF8.00"(DN160)

M8xP1.25

60

25

CF-HB-1000M

CF10.0"(DN200)

M8xP1.25

60

25
Inch Thread

Part Number (inch thread)

Size

Thread

L

No. of Sets

CF-HB-133

CF1.33"(DN16)

8-32 UNC

19.1

25

CF-HB-212

CF2.12"(DN25)

1/4"-28UNF

31.8

25

CF-HB-275

CF2.75"(DN40)

1/4"-28UNF

31.8

25

CF-HB-338

CF3.38"(DN50)

5/16"-24UNF

44.5

25

CF-HB-450

CF4.50"(DN63)

5/16"-24UNF

50.8

25

CF-HB-600

CF6.00"(DN100)

5/16"-24UNF

57.2

25

CF-HB-800

CF8.00"(DN160)

5/16"-24UNF

57.2

25

CF-HB-1000

CF10.0"(DN200)

5/16"-24UNF

63.5

25

*Material: Stainless Steel
*Set: Bolts, Nuts & Washers

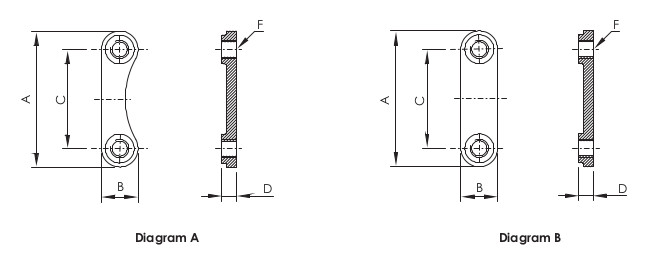

Nut Plates

Part Number (metric thread)

SizeDiagram

A

B

C

D

F

CF-PN-133M

CF1.33"(DN16)

A

20.30

7.62

13.46

3.20

M4xP0.7

CF-PN-275M

CF2.75"(DN40)

A

41.16

12.70

29.46

5.10

M6xP1.0

CF-PN-338M

CF3.38"(DN50)

B

44.45

12.70

27.69

5.30

M8xP1.25

CF-PN-450M

CF4.50"(DN63)

B

51.56

12.70

35.30

5.30

M8xP1.25

CF-PN-462M

CF4.62"(DN80)

B

45.80

12.70

31.60

5.30

M8xP1.25

CF-PN-600M

CF6.00"(DN100)

B

41.65

12.70

25.40

5.30

M8xP1.25

CF-PN-800M

CF8.00"(DN160)

B

44.45

12.70

28.45

5.30

M8xP1.25

Part Number (inch thread)

Size

Diagram

A

B

C

D

F

CF-PN-133

CF1.33"(DN16)

A

20.30

7.62

13.46

3.20

8-32

CF-PN-275

CF2.75"(DN40)

A

42.16

12.70

29.46

5.10

1/4-28

CF-PN-338

CF3.38"(DN50)

B

44.45

12.70

27.69

5.30

5/16-24

CF-PN-450

CF4.50"(DN63)

B

51.56

12.70

35.30

5.30

5/16-24

CF-PN-462

CF4.62"(DN80)

B

45.80

12.70

31.60

5.30

5/16-24

CF-PN-600

CF6.00"(DN100)

B

41.65

12.70

25.40

5.30

5/16-24

CF-PN-800

CF8.00"(DN160)

B

44.45

12.70

28.45

5.30

5/16-24

CF-PN-1000

CF10.00"(DN200)

B

44.45

12.70

30.23

5.30

5/16-24

*Material: Stainless Steel

CF Flange Plastic Cap

Part Number

Size

A

B

CF-PC-133

CF1.33"(DN16)

36.20

34.20

CF-PC-212

CF2.12"(DN25)

56.40

54.00

CF-PC-275

CF2.75"(DN40)

72.10

70.10

CF-PC-338

CF3.38"(DN50)

88.50

85.90

CF-PC-450

CF4.50"(DN63)

118.30

113.50

CF-PC-462

CF4.62"(DN80)

120.50

117.60

CF-PC-600

CF6.00"(DN100)

156.40

151.60

CF-PC-675

CF6.75"(DN130)

173.80

171.60

CF-PC-800

CF8.00"(DN160)

206.00

202.00

CF-PC-1000

CF10.00"(DN200)

258.00

254.00

CF-PC-1200

CF12.00"(DN250)

309.00

304.60

CF-PC-1325

CF13.25"(DN270)

341.10

336.70

CF-PC-1400

CF14.00"(DN300)

360.10

355.70
